HIGH DENSITY POLY ETHYLENE PIPES (HDPE) – PE 100 (ISO 4427, DIN 8074 )

Description:
We provide a versatile range of high-quality HIGH DENSITY PPOLY ETHYLENE PIPES (HDPE) pipes, engineered to meet ISO 4427 and DIN 8074 standards, with a minimum required strength (MRS) of 10 and a design stress of 8 MPa. HDPE pipes are dimensioned based on outer diameter, wall thickness, and the Standard Dimension Ratio (SDR), S-Pipe Series, and PN (Nominal Pressure). These pipes offer excellent performance across a variety of industrial and commercial applications, including water supply, gas distribution, firefighting, and irrigation systems. Our pipes are available in standard sizes measured in millimeters (mm).We do supply different manufacturer pipes , union hdpe pipes , Al Jubail hdpe pipes , Saudi drip hdpe pipes and Al munif pipes .

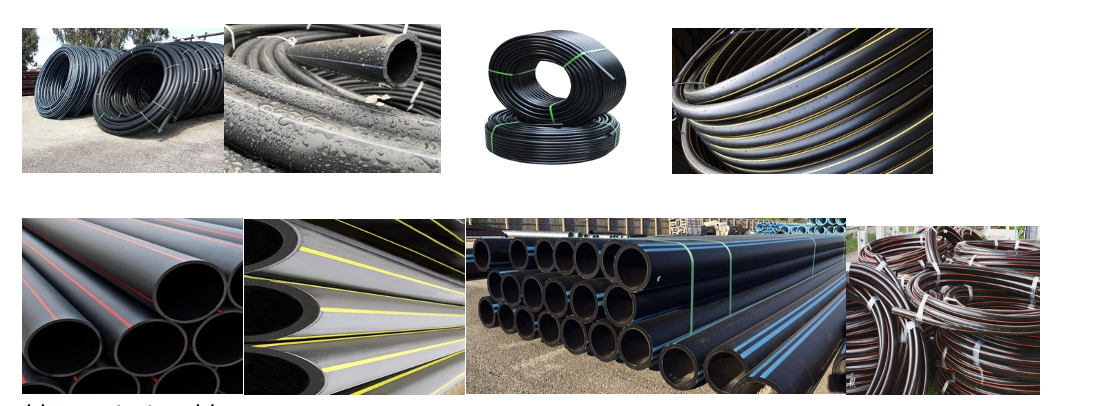

HIGH DENSITY POLY ETHYLENE PIPES (HDPE) Pipes Range:

  1. LDPE – LOW DENSITY POLY ETHYLENE Pipes (13 mm to 32 mm): Dimension based on AS 2698.1 for drip irrigation tubing, with a working pressure of 3 bar at 20°C.
    • Available in rolls of 30, 50, and 100 meters.
    • Suitable for low-pressure irrigation and garden watering systems.
  2. HIGH DENSITY POLY ETHYLENE PIPES (HDPE) Pipes (20 mm to 400 mm):
    • Supplied in 6-meter lengths.
    • Available in pressure ratings of 6 bar, 10 bar, and 16 bar.
    • Ideal for high-pressure water supply systems, sewage, and industrial applications.
  3. HIGH DENSITY POLY ETHYLENE PIPES (HDPE) Pipes (20 mm to 63 mm):
    • Offered in rolls of 30, 50, and 100 meters.
    • Pressure ratings available: 6 bar, 10 bar, and 16 bar.
    • Suitable for irrigation, rural water supply, and plumbing.
  4. HIGH DENSITY POLY ETHYLENE PIPES (HDPE) Pipes (75 mm to 110 mm):
    • Supplied in rolls of 50 and 100 meters.
    • Pressure ratings of 6 bar, 10 bar, and 16 bar.
    • Commonly used for larger-scale irrigation, drainage, and infrastructure projects.

Specialized HIGH DENSITY POLY ETHYLENE PIPES (HDPE) Pipe Options:

  • Blue Strip HDPE Pipes: Specially designed for potable water transportation, ensuring a safe and reliable supply system.
  • Yellow Strip HDPE Pipes: Exclusively for gas distribution, available in 6-meter lengths, with a pressure rating of 16 bar (sizes 20 mm to 110 mm).
  • Red Strip HDPE Pipes: Designed for firefighting systems, available in sizes from 50 mm to 160 mm, rated for 16 bar pressure. These pipes ensure reliability in high-risk environments where performance is critical.

Operating Temperature Range:

  • For pressure ratings of 10 bar and 16 bar, HDPE pipes can operate within a temperature range of -40°C to +60°C, subject to specific pressure requirements.

Applications:

  • Water Supply and Distribution: From potable water systems to rural irrigation, HDPE pipes are preferred for their resistance to corrosion, flexibility, and long-term performance.
  • Gas Distribution: The yellow strip HDPE pipes are tailored specifically for gas transportation, ensuring safe, leak-proof gas delivery under high pressure.
  • Fire Fighting Systems: Red strip HDPE pipes provide high durability and pressure resistance, making them reliable in fire suppression systems.
  • Agricultural Irrigation: Efficiently transport water over long distances, making them ideal for large-scale farming and irrigation systems.
  • Industrial Use: Suitable for conveying chemicals, wastewater, and other industrial fluids, where resistance to harsh chemicals and environmental stress is crucial.
  • Pumping Stations: HDPE pipes are ideal for water pumping systems, delivering high pressure and efficient fluid transfer over long distances.
  • Sewage and Wastewater Systems: The corrosion resistance of HDPE pipes makes them an excellent choice for handling sewage and wastewater in municipal and industrial settings.

Why Choose HIGH DENSITY POLY ETHYLENE PIPES (HDPE) Pipes:

  • High Strength and Durability: Manufactured from PE 100, these pipes are engineered to withstand high-pressure environments and harsh external conditions, ensuring long service life.
  • Flexibility and Lightweight: Easy to handle, transport, and install, reducing labour and installation costs significantly.
  • Corrosion and Chemical Resistance: HDPE pipes resist corrosion, chemicals, and environmental stress, making them ideal for long-term use in various applications.
  • UV Protection: These pipes offer enhanced ultraviolet (UV) protection, ensuring that they retain their structural integrity even in prolonged outdoor exposure.
  • Thermal Properties: The thermal properties of HDPE ensure that the water temperature within the pipe changes more slowly compared to other piping materials, contributing to the overall energy efficiency of the system.
  • Longevity: The wall thickness and structural integrity of HDPE pipes remain unaffected for up to 50 years or more, ensuring reliable and low-maintenance performance.
  • Eco-Friendly: HDPE pipes are fully recyclable, contributing to environmental sustainability.

With our comprehensive range of HDPE pipes, you are guaranteed high performance, durability, and reliability for all your piping needs, across a wide spectrum of industries and applications.

Product Title: HIGH DENSITY POLY ETHYLENE (HDPE) Butt Fusion Fittings – PE 100 (ISO 4427, DIN 8074 MRS 10)

Butt weld(butt fusion 90* bend (elbow) -sdr11 pe 100 pn16
Size from 40 mm to 500 mm

Butt weld(butt fusion 45* bend (elbow) -sdr11 pe 100 pn16
Size from 40 mm to 500 mm

Butt weld 90* Equal tee (butt fusion ) -sdr11 pe 100 pn16
Size from 40 mm to 500 mm

Butt weld 90* Equal Cross Tee (Butt Fusion ) -sdr11 pe 100 pn16
Size from 40 mm to 500 mm

Butt weld 90* Reducer Tee (Butt Fusion -Unequal Tee ) -sdr11 pe 100 pn16
Size from 40 mm to 900 mm

Butt Weld Reducer(Butt Fusion ) -sdr11 pe 100 pn16
Size from 40 mm to 900 mm

Butt Weld Stub End (Butt Fusion -Stub Adaptor ) -sdr11 pe 100 pn16
Size from 25 mm to 900 mm

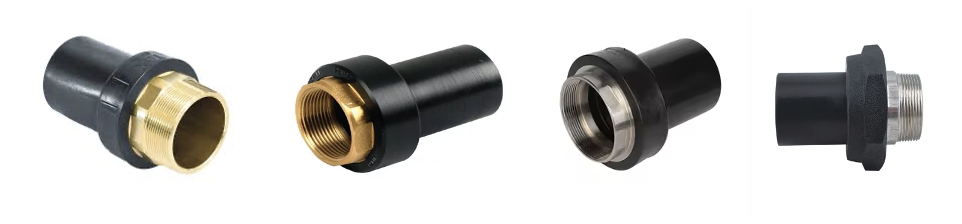

HDPE – PE 100 BUTT WELD MALE THREADED ADAPTOR CHROM AND BRASS PN16 SDR11
SIZES FROM 20 MM TO 110 MM
SS

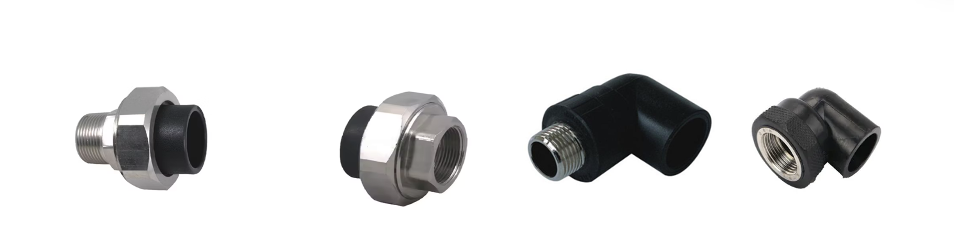

HDPE -PE100 BUTT WELD FABRICATED MALE , FEMALE UNION AND MALE AND FEMALE ELBOW SDR11 PN16
SIZES FROM 20 MM TO 63 MM .

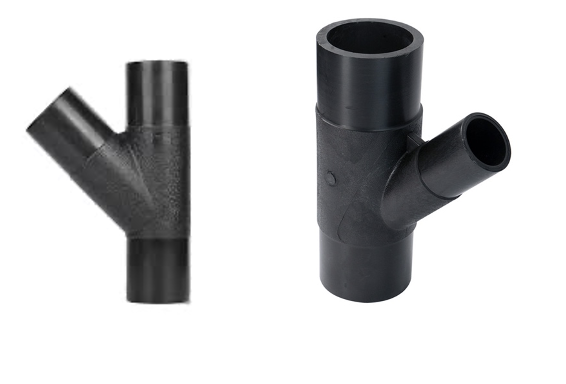

Butt Weld wye and Reducer Wye Branch (Butt Fusion –“y” Branch ) -sdr11 pe 100 pn16
Size from 63 mm to 315 mm

HDPE FIBER BACKING RING FOR HDPE STUB END PN10 AND PN16
SIZES 25 TO 250 MM (HDPE FLANGES)

HDPE PP COATED STEEL BACKING RING FOR HDPE STUB END PN16 SDR11
SIZES 25 MM TO 900 MM (PP COATED FLANGES)

(GI FLANGES)GALVANIZED BACKING RING FOR HDPE STUB END PN16 SDR11
SIZES FROM 50 MM TO 315 MM

STAINLESS STEEL FLANGES PN16 (SS316)

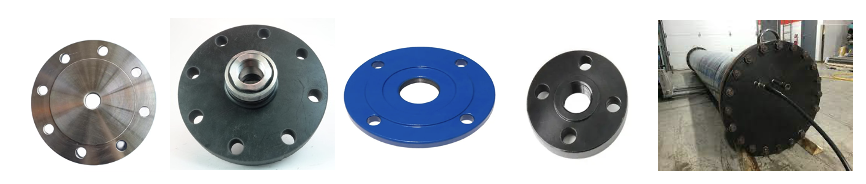

HDPE BLIND FLANGE PN16 SDR11
SIZES FROM 63 MM T0 315 MM DIN STANDARD

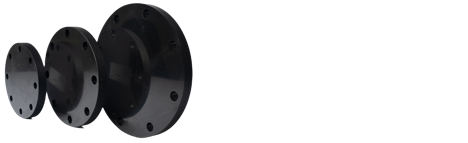

DI- DUCTILE IRON BLIND FLANGE PN16 SDR11
SIZES FROM 63 MM TO 900 MM DIN STANDARD
SIZES FROM 2” T0 16’’ ANCI STANDARD

HDPE , STAINLESS STEEL , DUCTILE IRON & BLACK STEEL THREADED FLANGE FOR THE PRESSURE TEST UPTO PN16 BAR

Description:
Our HIGH DENSITY POLY ETHYLENE PIPES (HDPE) Butt Fusion Fittings are engineered to meet the same high standards as our HDPE pipes, including ISO 4427, DIN 8074, and MRS 10. Butt fusion fittings are spigot-ended, designed for a strong, seamless connection through butt fusion welding. Unlike electrofusion welding, butt fusion involves welding two spigot ends (either a pipe or fitting) by applying heat and pressure, resulting in a highly durable, leak-proof joint. This method is ideal for larger-diameter fittings and pipes, providing enhanced strength and reliability in high-pressure systems.
We are able to supply al wassail Hdpe butt fusion fittings , Applaco Hdpe fittings , Al munif Hdpe fittings – made in ksa and Lesso Hdpe fittings- made in china ,
Saudi arabia made Hdpe fittings and number one Europe standard Hdpe butt fusion fittings can be supplied .

HIGH DENSITY POLY ETHYLENE (HDPE) Butt Fusion Fittings Range:

  • Wide Diameter Range: Available for pipes ranging from 25 mm to 900 mm , allowing flexibility in system design. However, for most project designs, pipe sizes above 50 mm are preferred, especially for larger-scale applications such as industrial, water supply, and gas distribution systems. These larger diameters are particularly well-suited for butt fusion welding due to the strength and durability required in high-pressure and long-distance piping systems.
  • Suitable for both high- and low-pressure applications.
  • Pressure ratings: 6 bar, 10 bar, and 16 bar, depending on the pipe and fitting size.

HIGH DENSITY POLY ETHYLENE (HDPE) Butt Fusion Welding Procedure

Butt fusion welding is a process in which the ends of two pipes or fittings are heated and then pressed together to form a single continuous joint. The key steps in the butt fusion process include:

  1. Preparation: Ensure the pipe ends are clean and aligned properly.
  2. Heating: A heating plate is placed between the pipe ends and heated to the required temperature.
  3. Fusion: After heating, the plate is removed, and the pipe ends are pressed together with sufficient force to fuse them into a strong, leak-proof joint.
  4. Cooling: The joint is allowed to cool, solidifying the connection.

Butt fusion is particularly advantageous for large-diameter pipes, as it provides a consistent, high-strength joint without the need for additional materials such as couplers.

Applications:
The applications for HDPE Butt Fusion Fittings are similar to those of electrofusion fittings, with the primary difference being the connection method. These fittings are preferred for larger-diameter systems where durability and strength are critical. Applications include:

  • Water Supply and Distribution: Reliable and leak-proof joints for potable water supply networks.
  • Gas Distribution: Safe and strong connections for gas transportation systems.
  • Fire Fighting Systems: High-pressure connections for fire suppression systems using larger-diameter pipes.
  • Agricultural Irrigation: Suitable for large-scale irrigation projects where long-distance water transport is required.
  • Industrial Use: Ideal for handling chemicals, wastewater, and other industrial fluids in high-pressure environments.
  • Sewage Systems: Perfect for large-scale sewage and drainage systems due to their superior durability and resistance to chemical corrosion.

Advantages of HDPE Butt Fusion Fittings:

  1. Strong and Durable Joints: Butt fusion creates a high-integrity joint that is as strong as the pipe itself, ensuring a leak-free connection.
  2. Cost-Effective for Large Diameters: Butt fusion fittings are particularly cost-effective for larger-diameter pipes (above 63 mm), where other methods like electrofusion may become more expensive.
  3. No Additional Couplings Required: Unlike electrofusion, butt fusion doesn’t require additional fittings like couplers, reducing material costs.
  4. Long-Lasting Performance: Butt fusion welds can withstand high pressures and harsh environmental conditions, ensuring a long service life in various applications.
  5. Consistent Joint Quality: Automated welding machines ensure uniform heat application and joint pressure, leading to consistent, reliable joints across all installations.
  6. Eco-Friendly: HDPE materials are fully recyclable, and the butt fusion process minimizes waste by creating direct, seamless connections.

Why Choose HDPE Butt Fusion Fittings:

  • Wide Diameter Range: Available for pipes ranging from 25 mm to 900 mm, allowing flexibility in system design.
  • High Pressure and Temperature Tolerance: Suitable for systems operating at temperatures from -40°C to +60°C and pressures up to 16 bar.
  • Leak-Proof and Corrosion-Resistant: HDPE butt fusion joints resist chemical corrosion and provide long-lasting, leak-proof connections for water, gas, and industrial pipelines.

With our HDPE Butt Fusion Fittings, you can be confident in achieving durable, reliable, and high-performance piping solutions for your projects.

Product Title: HIGH DENSITY POLY ETHYLENE PIPES Electrofusion Fittings PE100

Description:
Our HIGH DENSITY POLY ETHYLENE (HDPE) Electrofusion Fittings PE100 provide secure, durable, and leak-proof joints, ideal for water and gas pipelines. Available in sizes from 20 mm to 315 mm, these fittings conform to international standards (ISO-4427, EN 12201, BS EN 12001-3, and BS 6920). Rated SIR 11 – PN16, they can handle pressures up to 16 bar for both water and gas systems, making them a reliable choice for various industrial and commercial applications.

Key Specifications:

  • Sizes Available: 20 mm to 315 mm
  • Pressure Rating: PN16 (16 bar for water and gas)
  • Standards Compliant: ISO-4427, EN 12201, BS EN 12001-3, BS 6920

Advantages of HDPE Electrofusion Fittings:

  1. High Durability: Made from PE100, they offer superior resistance to corrosion, chemicals, and environmental factors.
  2. Easy Installation: Electrofusion technology ensures fast, secure connections with minimal labour.
  3. Leak-Proof Joints: Ensures high-integrity, leak-free systems for both water and gas.
  4. Flexibility: Suitable for underground and trenchless installations.
  5. Eco-Friendly: HDPE is recyclable, making it an environmentally friendly choice.

Applications and Usages:

  1. Water Supply Systems: HDPE pipes and fittings are ideal for transporting potable water, thanks to their resistance to corrosion and their ability to withstand high pressures.
  2. Gas Distribution: Designed for secure, leak-proof gas transportation, HDPE pipes offer reliability and safety for gas distribution systems.
  3. Irrigation Systems: Widely used in agricultural and landscaping irrigation due to their flexibility and durability, they handle large volumes of water efficiently.
  4. Pumping Stations: Ideal for high-pressure piping in water pumping stations, providing long-lasting, reliable performance.
  5. Fire Fighting Networks: HDPE fittings can be used in fire protection systems due to their high-pressure rating and resistance to wear and tear.
  6. Industrial Applications: Suitable for chemical, mining, and wastewater systems, where corrosion resistance and durability are crucial.

Why Choose HDPE for Water and Gas?

  • Optimal Transport Solution: HDPE pipes are known for their excellent performance in transporting water and gas due to their lightweight, flexibility, and resistance to corrosion and chemical reactions. They also minimize leakage and ensure efficient fluid transport in high-pressure systems.

These features make HDPE Electrofusion Fittings PE100 the top choice for modern piping solutions across a variety of industries.

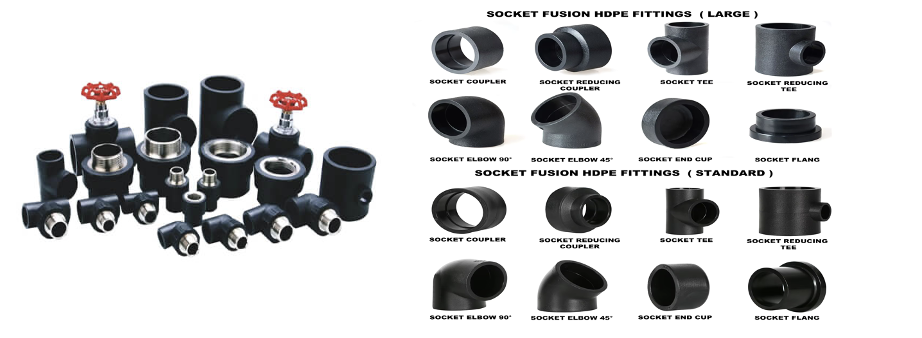

Product Title: HIGH DENSITY POLY ETHYLENE (HDPE) Socket Fusion Fittings

Description:
HIGH DENSITY POLY ETHYLENE (HDPE) Socket Fusion Fittings are designed to provide robust, secure joints in small to medium-diameter HDPE piping systems. These fittings meet ISO 4427 and EN 12201 standards and are available for pipes ranging from 20 mm to 63 mm in diameter, with a pressure rating of up to 16 bar. The socket fusion process involves heating the outer surface of the pipe and the inner surface of the fitting, allowing for a seamless, leak-proof joint when connected. This method is commonly used for smaller diameter pipes and is ideal for precise, compact installations, such as indoor plumbing and irrigation systems.

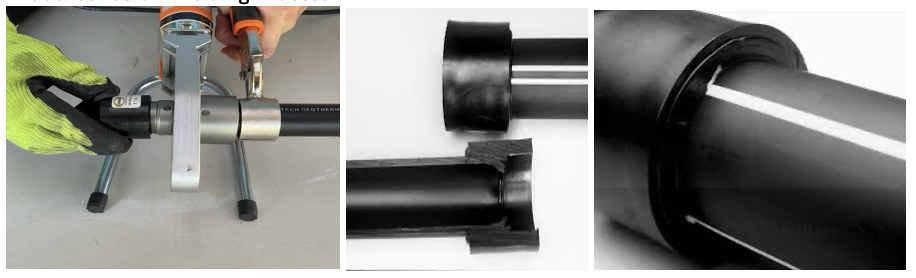

Socket Fusion Welding Process:

The socket fusion process uses a welding tool to heat the pipe and fitting surfaces. Once heated, the pipe is inserted into the fitting socket, forming a permanent bond. This method is ideal for small-diameter applications, providing a strong, long-lasting joint. The same socket fusion machine used for PPR fittings can also be applied for HDPE socket fusion, offering convenience and compatibility across different material types.

Key Features of HDPE Socket Fusion Fittings:

  1. Pipe Sizes (20 mm to 63 mm): Available for pipe sizes between 20 mm and 63 mm, these fittings are pressure-rated up to 16 bar, making them suitable for a variety of applications.
  2. Suitable for Drainage Networks: Fittings between 32 mm and 63 mm can be used for drainage networks, similar to the Geberit system for bathroom and kitchen drainage lines, providing a reliable solution for household plumbing.
  3. Compatibility with PPR Systems: HDPE socket fusion fittings are similar to PPR fittings, and the same welding machine can be used for both systems, simplifying installation and reducing the need for additional equipment.
  4. Brass Threaded Fittings Available: Brass threaded fittings are available for HDPE socket fusion systems, offering additional connection options. These fittings are available up to 63 mm in size and provide versatility for various plumbing and irrigation systems.
  5. Versatile Application: Suitable for irrigation, cool water distribution, bathroom and kitchen plumbing, and drainage systems, these fittings offer flexibility for residential, commercial, and industrial applications.

Applications:
HDPE Socket Fusion Fittings are ideal for a variety of small- to medium-diameter piping systems:

  • Water Supply Systems: Perfect for potable water and indoor plumbing systems, ensuring secure, leak-free connections.
  • Drainage Networks: Used in bathroom and kitchen drainage systems, particularly for pipes between 32 mm and 63 mm, similar to the Geberit system.
  • Irrigation Systems: Suitable for small-scale agricultural and garden irrigation, as well as cooling water systems.
  • Bathroom and Kitchen Plumbing: These fittings are ideal for use in compact, confined spaces, providing reliable connections for bathroom and kitchen water supply and drainage lines.

Advantages of HDPE Socket Fusion Fittings:

  1. Pressure Rating up to 16 Bar: These fittings are designed to handle pressure up to 16 bar, making them suitable for high-pressure applications in small- to medium-diameter piping systems.
  2. Compatibility with Existing Systems: The fittings can be used with the same socket fusion machine as PPR systems, streamlining the installation process and reducing equipment costs.
  3. Brass Threaded Fittings: The availability of brass threaded fittings up to 63 mm offers additional flexibility for connections in plumbing and irrigation applications.
  4. Drainage Solutions: These fittings can be used in drainage networks for residential and commercial buildings, offering the same reliability and performance as premium systems like Geberit.
  5. Compact and Reliable: Socket fusion fittings are ideal for use in tight spaces, providing strong, durable, and leak-proof connections.

Welding Machine for Socket Fusion:
The socket fusion welding process requires a socket fusion welding machine, which heats both the pipe and the fitting to the correct temperature before they are joined. The same machine used for PPR fittings can also be utilized for HDPE socket fusion fittings, making installation more versatile and cost-effective.

HDPE Socket Fusion Fittings are an excellent choice for small- to medium-sized piping systems, offering high-pressure performance, compatibility with existing systems, and flexibility for various applications, including water supply, drainage, and irrigation.

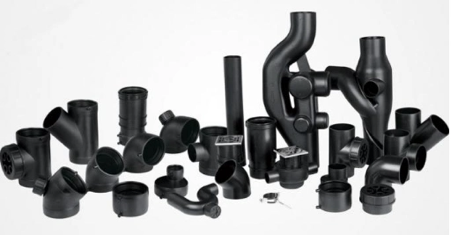

Product Title: HIGH DENSITY POLY ETHYLENE Geberit – Drainage Network (PE 100 HDPE)

Description:
The HIGH DENSITY POLY ETHYLENE (HDPE) Geberit Drainage Network system is a superior non-pressure drainage solution, designed specifically for kitchen and bathroom applications. Made from high-quality PE 100 HDPE material, these pipes and fittings offer exceptional performance and longevity. Available in sizes from 32 mm to 200 mm and pipe lengths of 4 meters and 6 meters, the system meets SDR 26 standards. Designed for non-pressure applications, it is ideal for residential, commercial, and industrial drainage systems, ensuring smooth, reliable water flow.

Geberit Drainage Network Specifications:

  • Pipe Sizes: 32 mm to 200 mm
  • SDR Rating: SDR 26 for non-pressure applications
  • Pipe Lengths: Available in 4-meter and 6-meter lengths
  • Material: PE 100 HDPE (High-Density Polyethylene)

Non-Pressure Line System:
The Geberit Drainage Network is specifically engineered for non-pressure systems like kitchen and bathroom drainage, where gravity flow is used. These pipes and fittings ensure smooth drainage and prevent blockages, making them ideal for diverse applications.

Key Features of Geberit Drainage Network:

  1. Smooth Flow and Low Friction: Compared to UPVC pipes, HDPE pipes offer a significantly smoother inner surface, reducing flow resistance and minimizing the risk of blockages.
  2. Low Noise (dB) Levels: The sound insulation properties of HDPE are superior to UPVC, meaning less noise is produced during water flow, especially important in indoor drainage systems.
  3. Long Service Life: Geberit drainage pipes have a 50-year guaranteed lifetime when installed under our supervision and inspection, offering unmatched durability and performance.
  4. Durable PE 100 HDPE Material: This high-density material provides excellent chemical resistance, making it ideal for wastewater drainage systems that encounter a variety of substances.
  5. Custom Fabrication: Custom fittings can be fabricated according to client specifications, ensuring that even unique drainage systems can be accommodated.
  6. Comprehensive Range of Fittings: A full selection of standard fittings is available to meet every drainage requirement, including bends, tees, reducers, and custom connectors.

Advantages of Geberit Drainage Network vs. UPVC:

  1. Smoother Flow: HDPE pipes have a much smoother inner surface compared to UPVC, reducing friction and ensuring better flow rates, resulting in more efficient drainage systems.
  2. Lower Noise Levels: The sound of water flowing through HDPE pipes is quieter than UPVC pipes, making them ideal for use in residential and commercial buildings where noise reduction is important.
  3. Longer Lifespan: HDPE pipes can last up to 50 years, especially when installed correctly and under expert supervision, while UPVC pipes may not offer the same durability.
  4. Higher Resistance to Cracking: HDPE is more flexible and less prone to cracking or breaking compared to UPVC, which is crucial in drainage systems exposed to varying environmental conditions.

Applications:

  • Kitchen Drainage Systems: Efficiently manages wastewater from sinks and appliances.
  • Bathroom Drainage Systems: Ideal for bathtubs, showers, toilets, and sinks, with smooth water flow and minimal maintenance.
  • Building and Industrial Drainage: Suitable for managing wastewater in larger buildings and industrial facilities.
  • Rainwater Drainage Systems: Can be used for rooftop and surface water drainage.

Fabrication for Custom Requirements:
For specialized applications, the Geberit Drainage Network can fabricate custom fittings to meet unique design specifications, providing flexibility and adaptability to diverse drainage systems.

With a smoother flow, quieter operation, and a guaranteed 50-year lifespan, the Geberit Drainage Network system made from PE 100 HDPE is a premium choice for long-lasting, efficient drainage solutions.

Brand :- cosmoplast

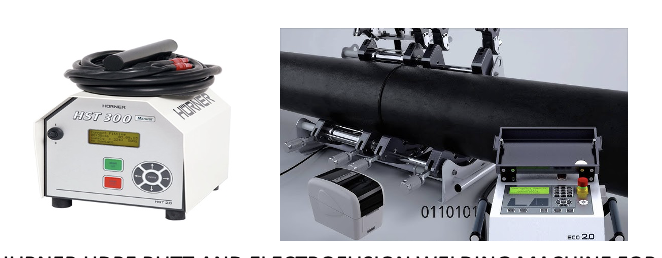

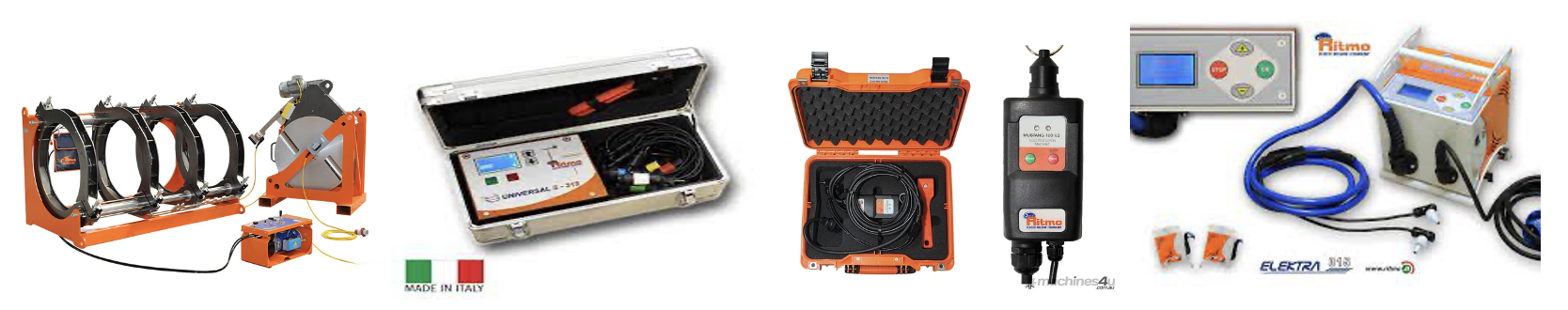

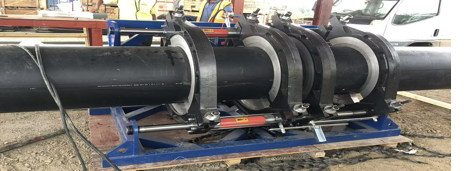

HIGH DENSITY POLY ETHYLENE (HDPE) BUTT Welding (BUTT FUSION )and (ELECTROFUSION)Fusion Machineries

RITMO HDPE BUTT FUSION AND ELECTROFUSION WELDING MACHINE FOR PRESSURE SDR11 AND NONPRESSURE – DRAINAGE (GEBRIT)PN6 SDR26

HURNER HDPE BUTT AND ELECTROFUSION WELDING MACHINE FOR PRESSURE PIPE SDR11PN16

Welding and Fusion Machineries for Sale

We offer a wide range of high-quality European electrofusion and butt fusion machineries , designed to cater to the diverse requirements of HDPE piping projects. Sourced from renowned manufacturers in Italy, Germany, and Turkey , our machines ensure top-tier performance, durability, and reliability. If customers prefer, we can also provide China-made machines to meet specific budget considerations.

Our Range of Welding/Fusion Machines:

  • Hydraulic Butt Fusion Machines: Designed for larger diameter pipes and fittings , these hydraulic machines deliver strong and consistent welding pressure, resulting in superior joint quality. Ideal for large-scale industrial, municipal, and infrastructure projects.
  • Manual Butt Fusion Machines:
    • Push Type and Wheel Type: These user-friendly machines are perfect for small diameter ranges , making them suitable for on-site welding in various conditions. They ensure easy and reliable operation for smaller HDPE pipe installations.

Brands We Offer:

  • RITMO, HURNER, VALLI, GF: We deal with leading brands known for their innovative technology, precision engineering, and exceptional durability , all of which are critical in ensuring reliable and efficient HDPE welding.

Features and Services:

  • European Quality Assurance: All our machines are of European make (Italy, Germany, Turkey) , guaranteeing top-notch quality, reliability, and performance without compromise.
  • China-Made Options Available: For customers who prefer a more budget-friendly option, we can provide China-made machines based on request, offering flexibility without sacrificing operational effectiveness.
  • 1-Year Guarantee: We stand behind the quality of our products by offering a 1-year guarantee on all our welding and fusion machines, ensuring peace of mind and reliable performance.
  • On-Site Guidance and Training: Our experienced technical team is available to guide, train, and advise customers on the proper welding procedures at their site, ensuring that all machines are used efficiently and that joints are welded to the highest standards.
  • Hydraulic and Manual Options for All Project Needs: Whether your project involves large-diameter piping requiring hydraulic power or smaller-scale work needing manual precision, we have a full selection of welding machines to match every requirement.

Our range of welding and fusion machinery is well-suited for both small and large-scale projects , offering consistent, reliable, and efficient solutions for HDPE piping installation. With equipment that guarantees high performance, precision, and durability , our welding and fusion machines are the ideal choice for delivering the quality results your projects require.

Product Title: PP Compression Fittings (Polypropylene) for HIGH DENSITY POLY ETHYLENE PIPES (HDPE)

Description:
Our PP (Poly) Compression Fittings are designed to provide reliable, easy-to-install solutions for irrigation systems and maintenance purposes . Available in sizes ranging from 20 mm to 110 mm , these fittings offer a dependable option for connecting HDPE pipes in various applications. Smaller sizes (20 mm to 63 mm) are rated for 16 bar pressure , while larger sizes (above 63 mm to 110 mm) are rated for 10 bar pressure , making them suitable for diverse pressure requirements in irrigation and other non-critical piping systems.

Key Features of PP Compression Fittings:

  1. Wide Range of Sizes: Available in sizes from 20 mm to 110 mm , providing versatility for small and medium-sized piping projects.
  2. High Pressure Rating: Smaller sizes (20 mm to 63 mm) can withstand 16 bar pressure , while larger sizes (above 63 mm to 110 mm) are rated for 10 bar pressure , making them suitable for different irrigation system requirements.
  3. Easy Installation: PP compression fittings are designed for quick and easy installation without specialized tools, reducing labor costs and installation time.
  4. Durable Material: Made from high-quality polypropylene , these fittings offer excellent resistance to corrosion, chemicals, and UV radiation, ensuring durability and long service life even in outdoor conditions.
  5. Leak-Proof Connections: The compression mechanism ensures a secure, leak-proof connection between HDPE pipes, minimizing water wastage and increasing the efficiency of irrigation systems.
  6. Versatile Application: These fittings are commonly used in agricultural irrigation , landscaping , and maintenance of water supply systems, where easy and quick connections are needed.

Applications:

  • Irrigation Systems: PP compression fittings are ideal for agricultural and landscaping irrigation, providing reliable and leak-free connections to ensure efficient water distribution.
  • Maintenance and Repairs: These fittings are perfect for maintenance and repair work, allowing easy disconnection and reconnection of pipes without the need for specialized welding tools or equipment.
  • Water Distribution: Suitable for use in low- to medium-pressure water distribution systems where quick installation and removal are important.

Advantages of PP Compression Fittings:

  1. User-Friendly Installation: No specialized tools or equipment are required, making it easy for both professionals and end-users to install and maintain.
  2. Cost-Effective Solution: The fittings offer a budget-friendly alternative for irrigation and maintenance, especially for smaller projects or temporary installations.
  3. Corrosion and UV Resistance: Polypropylene material is resistant to corrosion and UV radiation, providing reliable performance even in harsh outdoor environments.
  4. Reusable: The fittings can be easily disconnected and reused, which is particularly advantageous in systems that may require frequent changes or temporary installations.
  5. Flexible and Adaptable: PP compression fittings can accommodate slight misalignment and adjust to expansion and contraction in HDPE pipes, providing a robust and flexible connection solution.

PP Compression Fittings offer an efficient, cost-effective, and reliable solution for irrigation systems and maintenance projects, ensuring quick installation , durability , and leak-proof connections in a variety of water distribution applications.
We are the supplier of Al Wassail and maise pp compression fittings and irrigation .

Product Title: Barbed Irrigation Fittings

Description:

Our Barbed Irrigation Fittings are specifically designed for use in irrigation systems with LDPE drip tubes of 13 mm, 16 mm, 19 mm, and 25 mm internal diameters (ID). These fittings provide a reliable and easy way to connect drip irrigation components, such as drippers, emitters, bubblers, and sprinklers . They are suitable for operating at 3 bar pressure , which is more than sufficient for efficient irrigation lines. We maintain a full stock of these fittings and LDPE pipes, offering competitive prices for all your irrigation needs.

Key Features of Barbed Irrigation Fittings:

  1. Wide Range of Sizes: Available for LDPE drip tubes with internal diameters of 13 mm, 16 mm, 19 mm, and 25 mm , providing flexibility for various irrigation requirements.
  2. Pressure Rating: These fittings are designed to handle 3 bar pressure , which is ideal for irrigation lines, ensuring efficient water distribution to all emitters.
  3. Quick and Easy Installation: The barbed design allows for simple push-fit connections , creating a tight and secure joint without the need for additional tools or clamps.
  4. Versatile Application: Compatible with drippers, emitters, bubblers, and sprinklers , these fittings allow for customizable irrigation setups that can be tailored to meet the specific watering needs of different plants and landscaping areas.
  5. Durable Material: Made from high-quality polypropylene , these fittings are UV-stabilized and corrosion-resistant, ensuring reliable performance and long-term durability even under harsh environmental conditions.
  6. Leak-Proof Connections: The barbed design creates a tight seal with the inner surface of the pipe, reducing the risk of leaks and improving water efficiency in irrigation systems.

Applications:

  • Drip Irrigation Systems: Ideal for connecting drip lines to drippers and emitters , providing precise and efficient watering directly to the root zone.
  • Bubblers and Sprinklers: Suitable for attaching bubblers and sprinklers , making them versatile for various irrigation methods used in landscaping, gardens, and nurseries .
  • Agricultural Irrigation: Widely used in greenhouses, orchards, and farms , offering a cost-effective and efficient solution for irrigation in both small and large agricultural areas.

Advantages of Barbed Irrigation Fittings:

  1. Efficient Water Distribution: With the capability to withstand 3 bar pressure , these fittings ensure consistent and controlled water flow to all connected irrigation components.
  2. Cost-Effective Solution: Barbed fittings offer a low-cost yet effective solution for setting up or expanding irrigation systems, making them an affordable choice for gardeners and farmers.
  3. Flexible and Adaptable: These fittings are compatible with a wide range of irrigation components , allowing users to create a fully customized watering system that meets specific plant and area requirements.
  4. Reliable Performance: Manufactured from UV-resistant and corrosion-proof materials, these fittings provide long-lasting performance even in tough outdoor conditions.
  5. Readily Available: We carry a full stock of LDPE pipes and barbed fittings , ensuring fast and easy access to the products needed to create and maintain an efficient irrigation system at competitive prices .

Barbed Irrigation Fittings provide an affordable, efficient, and durable solution for connecting drip tubes and various irrigation components, making them ideal for drip irrigation, sprinklers, and bubblers . With high-quality materials and easy installation, they are the perfect choice for enhancing the performance and efficiency of your irrigation system .

Product Title: Sprinklers

Description:
Our sprinklers are available in various types, including rotator sprinklers and pop-up sprinklers, designed to provide efficient water distribution for irrigation systems. We feature products from renowned brands like Hunter (USA) and Rainbird (USA), ensuring superior performance and reliability. Whether you need half-circle or full-circle coverage, our sprinklers are engineered to deliver exceptional results. The pop-up sprinklers offer adjustable nozzles, allowing spray patterns to be customized from 0 to 360 degrees, ensuring flexibility for any irrigation layout.

Types of Sprinklers:

  1. Rotator Sprinklers: • Half-Circle and Full-Circle Coverage: Available in configurations for both half-circle and full-circle coverage, ensuring precise watering for all areas.

    • Material Options: Choose between plastic and brass bodies for rotator sprinklers, catering to different durability and environmental needs.
    • High-Quality Brands: Sourced from Hunter (USA) and Rainbird (USA), offering consistent, reliable performance for all irrigation projects.
  2. Pop-Up Sprinklers: • Adjustable Nozzle (0 to 360 Degrees): Features a customizable spray pattern from 0 to 360 degrees, ensuring precise water application for gardens, lawns, and landscaped areas.


• Plastic Body Construction: Made from durable, lightweight plastic, resistant to corrosion and wear.
• Advanced Technology: Manufactured by Hunter (USA) and Rainbird (USA), world leaders in irrigation solutions, ensuring the highest standards in pop-up sprinkler systems.

Solenoid Valves:

• Integral to automated sprinkler systems, our solenoid valves from Hunter (USA) and Rainbird (USA) ensure reliable control and regulation of water flow in irrigation setups.
• Designed for seamless integration with both residential and commercial sprinkler systems.

Key Features of Sprinklers:

Key Features of Sprinklers:

  1. Flexible Coverage: Half-circle and full-circle options provide tailored watering solutions for different landscapes.
  2. Adjustable Spray Angle: Pop-up sprinklers with adjustable nozzles (0 to 360 degrees) allow precise coverage for irregularly shaped areas.
  3. Durable Material: Rotator sprinklers are available in plastic and brass, while pop-up sprinklers feature high-quality plastic bodies for longevity and resistance to harsh outdoor conditions.
  4. Efficient Water Distribution: Designed for uniform water delivery, these sprinklers optimize coverage and minimize water wastage.
  5. Reputable Brands: With products from Hunter (USA) and Rainbird (USA), you can trust in industry-leading innovation and quality for your irrigation needs.

Applications:

  • Lawns and Gardens: Sprinklers are ideal for evenly watering lawns, flower beds, and garden areas , helping maintain a lush, green landscape.
  • Parks and Public Areas: Suitable for parks, playgrounds , and other recreational areas where efficient and uniform irrigation is essential.
  • Agricultural Fields: Rotator sprinklers provide effective water coverage for large agricultural areas , promoting healthy plant growth and optimizing yield.
  • Residential and Commercial Landscaping: Pop-up sprinklers are commonly used in residential gardens and commercial properties to maintain a neat appearance while ensuring efficient irrigation.

Advantages of Our Sprinklers:

  1. Global Brand Assurance: With sprinklers, pop-up spray heads, and solenoid valves from Hunter (USA) and Rainbird (USA), customers receive reliable and cutting-edge irrigation technology.
  2. Customizable Coverage: Adjustable nozzles on pop-up sprinklers ensure precise water application, reducing waste.
  3. Durability: The use of brass and high-quality plastic in rotator and pop-up sprinklers ensures long-term reliability in outdoor environments.
  4. Hidden Design: Pop-up sprinklers remain concealed when not in use, preserving the aesthetic appeal of landscapes.
  5. Comprehensive Range: From rotator sprinklers to solenoid valves, we offer all the essential components needed for an effective irrigation system.
    Our range of sprinklers, including rotator and pop-up types, along with solenoid valves, delivers unmatched performance, durability, and flexibility. Sourced from trusted brands like Hunter (USA) and Rainbird (USA), these products ensure precise and efficient irrigation for residential, commercial, and agricultural landscapes.

Valve Box

Description:
We offer high-quality Valve Boxes from Al Wassail and Maise (Saudi Arabia), ideal for protecting solenoid valves and controllers in irrigation systems. Available in square, rectangle, and circle shapes, as well as jumbo sizes, these valve boxes are built to withstand outdoor conditions and provide easy access for maintenance. Perfect for ensuring durability and organization in irrigation setups, they are a reliable choice for residential, commercial, and agricultural applications.

Menu –
Engineering Services: HDPE Pipes and Fittings Installation

We offer a comprehensive range of engineering services focused on the installation of HDPE pipes and fittings, providing top-quality solutions for water supply lines, drainage systems, irrigation networks, potable water lines, and more. Our team is equipped with state-of-the-art equipment from Italy and Germany, ensuring high standards in every installation. Under the guidance of a technical supervisor with 16 years of experience in mechanical (HDPE) sectors , we guarantee the highest level of expertise and quality workmanship.

Our Services Include:

  • HDPE Pipes and Fittings Installation: We provide reliable and efficient installation services for HDPE pipes and fittings, tailored to meet the requirements of various applications, such as potable water, drainage, and irrigation.
  • Saddle Installations: Saddle fittings for tapping into existing pipelines are installed with precision, ensuring a leak-free, long-lasting connection.
  • HDPE Butt Welding: We have many butt welding machines capable of welding pipe sizes ranging from 50 mm to 630 mm , providing strong, seamless joints.
  • Electrofusion Welding: Our electrofusion machines , ranging from 20 mm to 630 mm (over 4 machines), ensure superior quality and precise joints for pressure systems.
  • Drainage Pipe Welding: We utilize 2 machines , capable of welding 32 mm to 315 mm , specifically for drainage systems, ensuring optimal performance and durability.

Equipment and Capabilities:

  • Our butt welding machines and electrofusion machines are sourced from reputable European manufacturers, including GF, RITMO, HURNER, and VALLI , known for their quality, reliability, and performance.
  • Pipe Cutting and Preparation: We use advanced electric pipe cutters electric and manual pipe scrapers , and chamfering tools to ensure precise preparation and joint quality.
  • Pressure Testing and Commissioning: Our team provides comprehensive services, from installation to pressure testing and commissioning , ensuring the system is fully operational and meets all regulatory standards.
  • Rental Services: In addition to installation, we also provide our equipment on a rental basis , with per-day charges that can be tailored based on project requirements.

Second title

HDPE Fabrication Services:
We specialize in custom HDPE fabrication, delivering solutions for various industrial and commercial projects:

  • Fabrication of Flanged Pipes, Tees, and Elbows: Custom-fabricated HDPE flanged pipes, flanged tees, and flanged elbows provide reliable connections for complex piping systems.
  • Puddle Flanges and Custom Fittings: We manufacture HDPE puddle flanges, puddle spigots, and manifolds , as well as other custom fittings, to meet unique project requirements.
  • Black Steel and Galvanized Fabrication: We fabricate black steel puddle flanges , galvanized , and ductile iron flanged pipes and spigot ends , ensuring compatibility with various HDPE and steel systems.

Features and Quality of Our Services:

  • Expert Technical Team: Our team of certified professionals, with over 16 years of experience, ensures that every installation meets the highest quality standards and adheres to international regulations.
  • High-Quality Equipment: Our equipment from Italy and Germany guarantees reliable, consistent results for butt fusion, electrofusion, and HDPE fabrication.
  • Precision and Efficiency: The use of advanced electric and manual preparation tools ensures precise joint preparation, leading to strong, leak-proof connections .
  • European Quality Assurance: We only use welding machines and tools manufactured in Europe, ensuring top-tier reliability and quality without compromise.
  • End-to-End Solutions: From installation and fabrication to pressure testing and commissioning , we offer complete solutions for HDPE piping systems.
  • Customization and Flexibility: We are capable of fabricating custom fittings, including manifolds and specialized flanged components , tailored to the specific requirements of each project.
  • Rental Flexibility: We provide rental services for welding equipment , offering flexibility and cost-efficiency for projects that require temporary use of specialized machinery.

Why Choose Us for HDPE Engineering Services:

  • Comprehensive Service Offering: We handle everything—from design and installation to testing and commissioning—allowing you to focus on your project while we manage all aspects of HDPE installation.
  • Precision Welding: Our expertise in butt fusion and electrofusion welding ensures strong, consistent welds , reducing the risk of leaks and maximizing the reliability of your piping system.
  • Wide Range of Applications: With extensive experience in water lines, drainage systems, irrigation networks, and potable water supply , we offer solutions across diverse sectors.
  • Adherence to Standards: All installations and fabrications meet or exceed international standards, including ISO 4427 and DIN 8074 , ensuring compliance and quality in every project.
  • Customized Fabrication: Our fabrication capabilities include custom fittings and specialized components , allowing us to cater to unique project needs with precision-engineered solutions.
  • European Standard Equipment: Utilizing equipment made in Italy and Germany guarantees consistent, high-quality results and provides assurance of long-term reliability and performance.

With our in-depth knowledge, experienced team, and high-quality European equipment, we provide dependable HDPE piping installations and fabrication services, ensuring that your project is completed with the utmost quality and professionalism.

HDPE Welding Machineries Repair and Service

We provide a comprehensive range of repair and service solutions for HDPE welding machineries , including butt weld and electrofusion machines . With a dedicated team of skilled technicians, we ensure that your welding equipment operates at peak performance, minimizing downtime and extending the life of your machinery.

3rd

Our Service Offerings:

  • Heating Issues: We diagnose and repair heating element malfunctions to ensure consistent and reliable heat application during welding, critical for achieving strong, quality joints.
  • Hydraulic System Repair: We address problems like hydraulic oil leaks , pressure variations, and other hydraulic issues that can compromise machine efficiency and welding quality.
  • Pressure Variation Solutions: Our experts work to identify and resolve pressure-related problems , ensuring that welding pressure is maintained at optimal levels for consistent fusion.
  • Electrical and Voltage Issues: Our service includes resolving electrical issues , such as voltage fluctuations, circuit malfunctions, and other problems that can affect the machine’s performance and safety.
  • Routine Maintenance and Calibration: Regular machine servicing and calibration to maintain accuracy, reliability, and compliance with industry standards.
  • Component Replacement: We source and replace faulty components, such as heating plates, pressure gauges, scrapers, and control systems , with genuine parts to guarantee long-lasting repairs.
  • Preventive Maintenance: We offer preventive maintenance programs to reduce the risk of unexpected failures and extend the operational life of your equipment.

Why Choose Our Repair and Service Solutions:

  • Experienced Technical Team: Our technicians are experienced in repairing and maintaining European and other international brands , ensuring that every issue is handled with expertise.
  • Fast and Efficient Service: We prioritize minimizing downtime by providing quick and efficient repairs , keeping your projects on schedule.
  • High-Quality Spare Parts: We use only genuine spare parts from leading manufacturers, guaranteeing that your machinery continues to operate at optimal performance levels.
  • On-Site Service Available: We provide on-site repair and service solutions , making it convenient for you to address any issues without transporting heavy machinery.

With our comprehensive repair and maintenance services, your HDPE butt weld and electrofusion machineries will consistently perform at their best, ensuring the quality and reliability of your HDPE piping projects. Whether it’s heating issues, hydraulic leaks, pressure variations, or electrical malfunctions , our expert team is ready to help you keep your equipment in optimal working condition.

Menu

Pvc pipes & Cpvc pipes

1. Manufacturing Standards

  • Initially manufactured in compliance with British Standards :
    • BS 3505/3506 for general uPVC applications.
  • Actively contributed to the development of Saudi Standards with SASO (Saudi Arabia Standard Organization) :
    • SAS 14/15/1396 for early regional specifications.

2. Modern Standards and Compliance

  • By the mid-1980s, manufacturing expanded to include pipes and fittings compliant with:
    • ASTM Standards :
      • Schedule 40 and Schedule 80 for uPVC pipes.
      • Schedule 80 CPVC pipes for more specialized applications.
  • The Saudi Arabian standards SASO ISO 1452-2 replaced SAS 14/15, aligning sizes and dimensions with international benchmarks.
  • Adherence to international standards for comprehensive applications:
    • ISO 161/1 conforming to DIN Standards : DIN 8061, 8062, 19532, and 19534.
    • SSA 255, 254 (1981) aligned with BS EN 50086-1:1994 , replacing BS 6099:Part1:1981 for electrical conduits.

3. Additional Standards

  • British Standards :
    • BS 3505, BS 4660, BS 5481.
  • ASTM Standards :
    • ASTM D-1785 (Schedule 40, 80), ASTM D-2241 (SDR), ASTM D-2665, ASTM F-441, F-439.
  • NEMA Standards :
    • TC-2, TC-6/TC-8, TC-3/TC-9.
  • EN Standards :
    • Pr EN 1401, Pr EN 1452-2.
  • DIN 4925 and SASO 1783/1784 for well casing and screens.

4. Range of Production

  • Pipes manufactured to SSA and DIN Standards are available in sizes ranging from 16mm to 710mm in outside diameter, accommodating various pressure and class requirements. Detailed specifications are listed in the catalog (refer to Table-1, Page 6).
  • Pipes under BS and ASTM Standards range from 1/2 inch to 8 inches across various pressure ratings.
  • We supply pipes in both metric (mm) and imperial (inches) units , catering to a wide range of applications and preferences.

5. Joint Types

  • SSA uPVC Pipes :
    • Diameters below 63mm: Available with spigot and solvent weld socket joints .
    • Diameters 63mm and larger: Offered with both mechanical rubber ring joints or solvent weld socket joints .
  • BS & ASTM PVC Pipes :
    • Available with plain spigot and socket joints only .

6. Brands and Supply

  • Thaqat Al Jazeera Trading supplies a wide range of high-quality pipe brands, including:
    • NEPROPLAST
    • Al Munif
    • Qatar Pipes
    • Other reputable Saudi manufacturers .
  • We ensure the timely supply of these products to meet your specific project requirements.

This version incorporates the brands you supply, emphasizing the reliability and flexibility of your services.

Pvc & cpvc fittings .

1. Manufacturing Standards

  • Pipes and fittings are manufactured to meet high-quality international and regional standards:
    • British Standards (BS) : BS 3505, BS 4660, BS 5481, and BS 1401 for drainage and waste fittings.
    • Saudi Standards (SASO) :
    • Fittings align with SASO ISO 1452-2, ensuring compatibility with local infrastructure and regulations.
    • ASTM Standards : ASTM D-1785, ASTM D-2241 (SDR), ASTM D-2665, ASTM F-441, ASTM F-439.
    • DIN Standards : DIN 8061, DIN 8062, DIN 4925.

2. Drainage and Waste Fittings

  • uPVC Drainage Fittings :
    • Manufactured according to BS 1401 and BS 4660 , ensuring high durability against water, chemicals, and mechanical stress.
    • Compliant with Saudi Standards (SASO) for local infrastructure needs.
    • Designed in golden brown color for drainage applications.
    • Available in standard lengths of 6 meters .
    • Non-pressure fittings , suitable for gravity lines where water flows due to a low-angle pipe installation.
    • Offered in:
      • Solvent socket type fittings for a permanent, watertight seal.
      • Push-fit type fittings for quick and flexible installation.
  • uPVC White Fittings :
    • Designed for smaller-sized applications:
      • Metric sizes : 40mm to 63mm.
      • Imperial sizes : 1 1/4 inches to 2 inches.
    • Best suited for compact indoor plumbing and drainage systems.

3. Applications of uPVC Drainage and Waste Fittings

  • Gravity flow systems : Ideal for installations where flow is managed by gravity, such as residential drainage lines and industrial wastewater systems.
  • Residential and commercial drainage : Effective for managing waste and sewage.
  • Industrial wastewater systems : Resistant to chemical exposure and suited for high-volume flow.
  • Rainwater management : Designed for capturing and directing runoff efficiently.
  • Underground sewage networks : Durable and leak-proof solutions for long-term performance.
  • Indoor plumbing systems : Compact, reliable solutions for kitchens, bathrooms, and similar spaces.

4. Joint Types

  • uPVC Drainage Fittings :
    • Solvent socket type for permanent installations requiring secure sealing.
    • Push-fit type for easy maintenance and repair.

5. Key Brands and Manufacturers in Saudi Arabia

  • NEPROPLAST : Offers a comprehensive range of drainage and waste fittings meeting international and Saudi standards.
  • Al Munif Pipes : Produces high-quality uPVC fittings for gravity drainage applications.
  • Qatar Pipes : Supplies reliable drainage solutions for diverse applications.
  • Saudi Specialized Pipes Factory (SSPF) : Renowned for compliant and durable drainage fittings.
  • Saudi Arabian Amiantit Company : A trusted name for gravity line drainage systems.

6. Applications of Smaller Range White Fittings (40mm to 63mm)

  • Indoor gravity drainage systems : Designed for small residential spaces like kitchens and bathrooms.
  • Cold-water plumbing : Effective for non-pressurized flows.
  • Light irrigation systems : Functional for gardens and landscapes.

7. Why Choose Thaqat Al Jazeera Trading?

  • Diverse product portfolio : Pipes and fittings for gravity flow, residential, commercial, and industrial drainage.
  • Top-quality brands : Partnerships with leading manufacturers, including:
    • NEPROPLAST
    • Al Munif
    • Qatar Pipes
    • FIP
    • COMER
    • Saudi Specialized Pipes Factory
    • Saudi Arabian Amiantit Company
  • Customizable solutions : Tailored to meet project-specific requirements.
  • Reliable delivery : Timely supply for projects of all sizes and complexity.

This update now emphasizes the non-pressure nature of these fittings, their suitability for gravity lines, and their broad application scope, along with key details on manufacturers and product offerings.
NEXT TITLE
DI(DUCTILE IRON) PIPES , FITTINGS AND FABRICATED FITTINGS .

Here’s a detailed write-up about Ductile Iron Pipes and Fittings as per Saudi standards that you can use for your documentation or uploading.

Ductile Iron Pipes and Fittings

Supplier : Thaqat Al Juzeira Trading Est.
Origin : Indian Make, Saudi Make

Product Overview

Ductile Iron (DI) Pipes and Fittings are robust, versatile, and designed for high-performance applications in water and wastewater systems. These products comply with the Saudi Standards, Metrology, and Quality Organization (SASO) and other relevant international standards like ISO 2531 and EN 545, ensuring reliability and safety.

Our DI pipes are available in flanged, socketed, and spigot-end types , while fittings come in standard designs or customized configurations fabricated by our in-house department to meet client-specific requirements.

Specifications

  1. Standards :
    • SASO standards
    • ISO 2531: Ductile Iron Pipes, Fittings, Accessories, and their Joints
    • EN 545: Water Supply Requirements
    • ISO 4179: Coatings for Ductile Iron Pipes
    • AWWA C151/A21.51 (as per demand)
  2. Sizes :
    • Pipes: DN 80 to DN 2600 mm
    • Fittings: DN 80 to DN 2000 mm
  3. Classifications :
    • Wall Thickness Class: K7, K8, K9, K12
    • Pressure Class: PN10, PN16, PN25
  4. Material :
    • High-strength ductile cast iron
    • High elongation properties for superior ductility
  5. Coatings :
    • Internal : Cement mortar lining (as per ISO 4179)
    • External : Zinc coating, bituminous paint, or epoxy resin coating
  6. Joint Types :
    • Push-on (socketed) joints
    • Flanged joints
  7. Fabrication :
    • Customized fittings with precise dimensions as per client needs

Features

  • High Strength & Ductility : Superior to gray cast iron, enabling resistance to stress and impact.
  • Corrosion Resistance : Internal and external coatings protect against corrosion in aggressive environments.
  • Leak-Proof Joints : Push-on and flanged joints ensure reliable and leak-proof connections.
  • Ease of Installation : Lightweight design reduces handling and installation time.
  • Customization : Flexible production to create bespoke fittings for specific projects.

Applications

  1. Water Supply Systems :
    • Potable water pipelines
    • Municipal and industrial water distribution
  2. Sewage and Drainage Systems :
    • Wastewater transport networks
    • Sewage treatment plant pipelines
  3. Irrigation :
    • Agricultural water delivery systems
    • Pressurized irrigation lines
  4. Fire Protection Systems :
    • Hydrant systems and sprinkler pipelines
  5. Industrial Piping :
    • Chemical transport systems (subject to lining and coating requirements)

Advantages

  • Long operational life with minimal maintenance
  • High hydraulic efficiency due to smooth internal surfaces
  • Environmentally friendly with recyclable material
  • Custom fabrication ensures compatibility with diverse project requirements

Images and Visualization

Ensure to upload high-quality images of:

  1. Ductile Iron Pipes (flanged and socketed)
  2. Standard Fittings (elbows, tees, reducers, flanges, etc.)
  3. Customized Fittings (client-specific designs, fabricated pieces)

—NEXT TITLE
DUCTILE IRON MECHANICAL JOINTS & VALVES

Here’s the updated write-up with the additional points included:

Ductile Iron Mechanical Joints & Flanged Valves

Manufacturer & Supplier : Thaqat Al Juzeira Trading Est.
Origin : Saudi Make, Turkey Make, European Brands

Product Overview

Thaqat Al Juzeira Trading Est specializes in supplying a comprehensive range of ductile iron (DI) mechanical joints, flanged valves, and pipe accessories. These products comply with National Water Company (NWC) of Saudi Arabia approvals and international standards, ensuring reliable performance for water and wastewater systems.

We also supply as per project specifications and ensure compatibility with project compliance sheets , offering tailored solutions for specific client requirements.

Our range includes flanged valves, air valves, pressure-reducing valves, check valves, strainers, flange adaptors, DI couplers, dismantling joints, DI saddles, and stainless steel repair couplings , all designed to work seamlessly with ductile iron pipes.

Specifications

  1. Standards :
    • SASO, ISO, EN, and AWWA standards
    • Compliant with NWC specifications
  2. Sizes :
    • Starting Range: DN 50 mm to DN 1200 mm
  3. Pressure Classes :
    • PN10, PN16
  4. Material :
    • High-strength ductile iron for joints and valves
    • Stainless steel for repair couplings
  5. Coatings :
    • Internal : Epoxy coating or cement lining (as applicable)
    • External : Fusion-bonded epoxy coating or bituminous paint

Products & Features

Valves

  1. Flanged DI GATE Valves & BUTTERFLY VALVE
    • Robust design for water and wastewater systems
    • High resistance to pressure and corrosion
  2. Air Valves
    • Single Orifice : Ideal for air release in pipelines
    • Double Orifice : Efficient for both air release and vacuum prevention
  3. Pressure Reducing Valves
    • Regulates downstream pressure to maintain consistent flow
  4. Check Valves
    • Prevents backflow and ensures unidirectional flow
    • Swing check and resilient seated options available
  5. Strainers
    • Removes debris from pipelines to protect downstream equipment

Pipe Accessories

  1. Flange Adaptors
    • For secure flange-to-pipe connections
    • Easy installation and high pressure resistance
  2. DI Couplers
    • Flexible connections for ductile iron pipelines
    • Absorbs slight misalignment and movement
  3. Dismantling Joints
    • Facilitates easy installation and removal of pipeline components
    • Adjustable lengths for flexibility
  4. DI Saddles
    • Designed for branch connections on ductile iron pipelines
    • Durable and corrosion-resistant
  5. Stainless Steel Repair Couplings
    • For quick and durable repair of damaged pipelines
    • Suitable for emergency repairs and long-term use

Applications

  1. Municipal Water Supply
    • Potable water distribution systems
    • Pressure management and flow control
  2. Wastewater and Sewage Systems
    • Air release, backflow prevention, and filtration
  3. Industrial Piping Systems
    • Protection against damage and reliable performance
  4. Firefighting Systems
    • Efficient control valves and couplings
  5. Pipeline Repairs and Maintenance
    • Emergency coupling repairs and system adjustments

Advantages

  • Approved by the National Water Company (NWC) of Saudi Arabia
  • Available in Saudi, Turkey, and European Brands
  • Wide size range from DN 50 mm to DN 1200 mm
  • Compatible with PN10 and PN16 pressure classes
  • High durability, corrosion resistance, and easy installation
  • Supplied as per project specifications , ensuring 100% compliance with project compliance sheets
